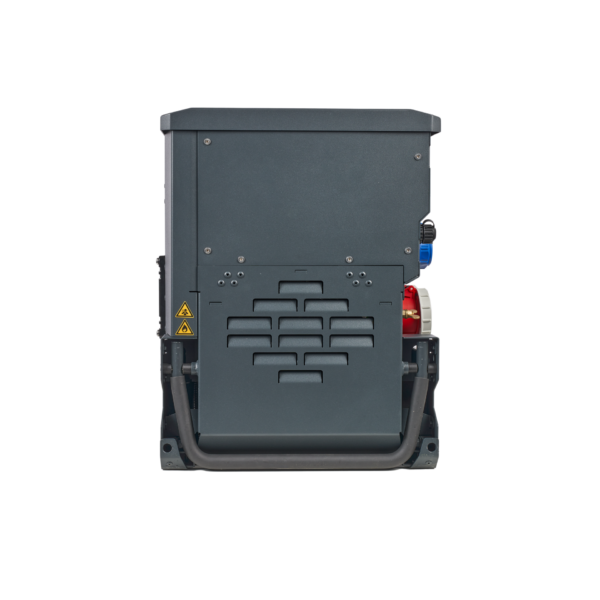

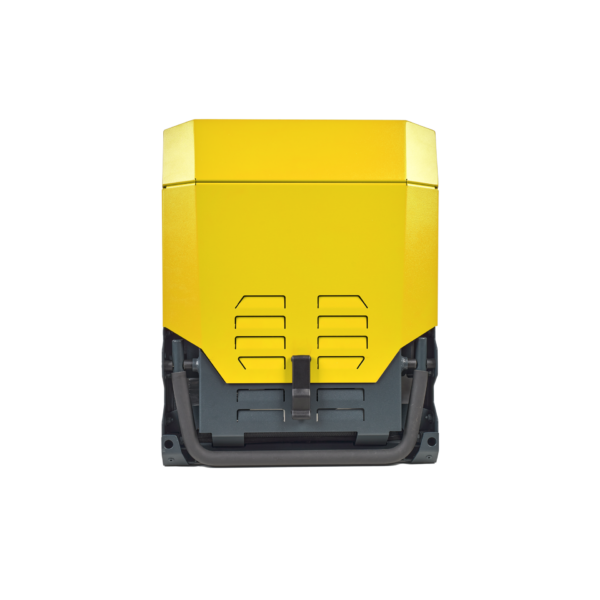

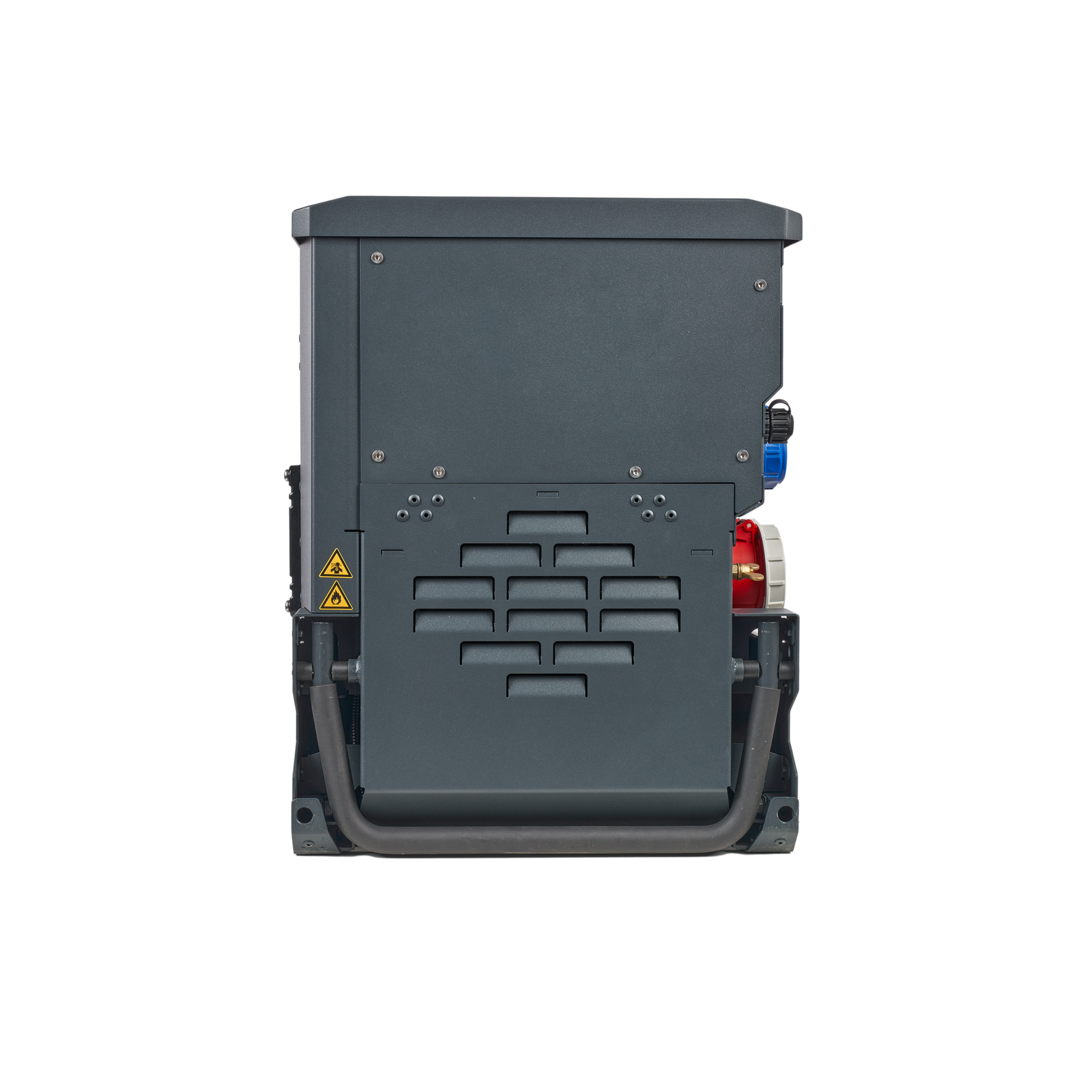

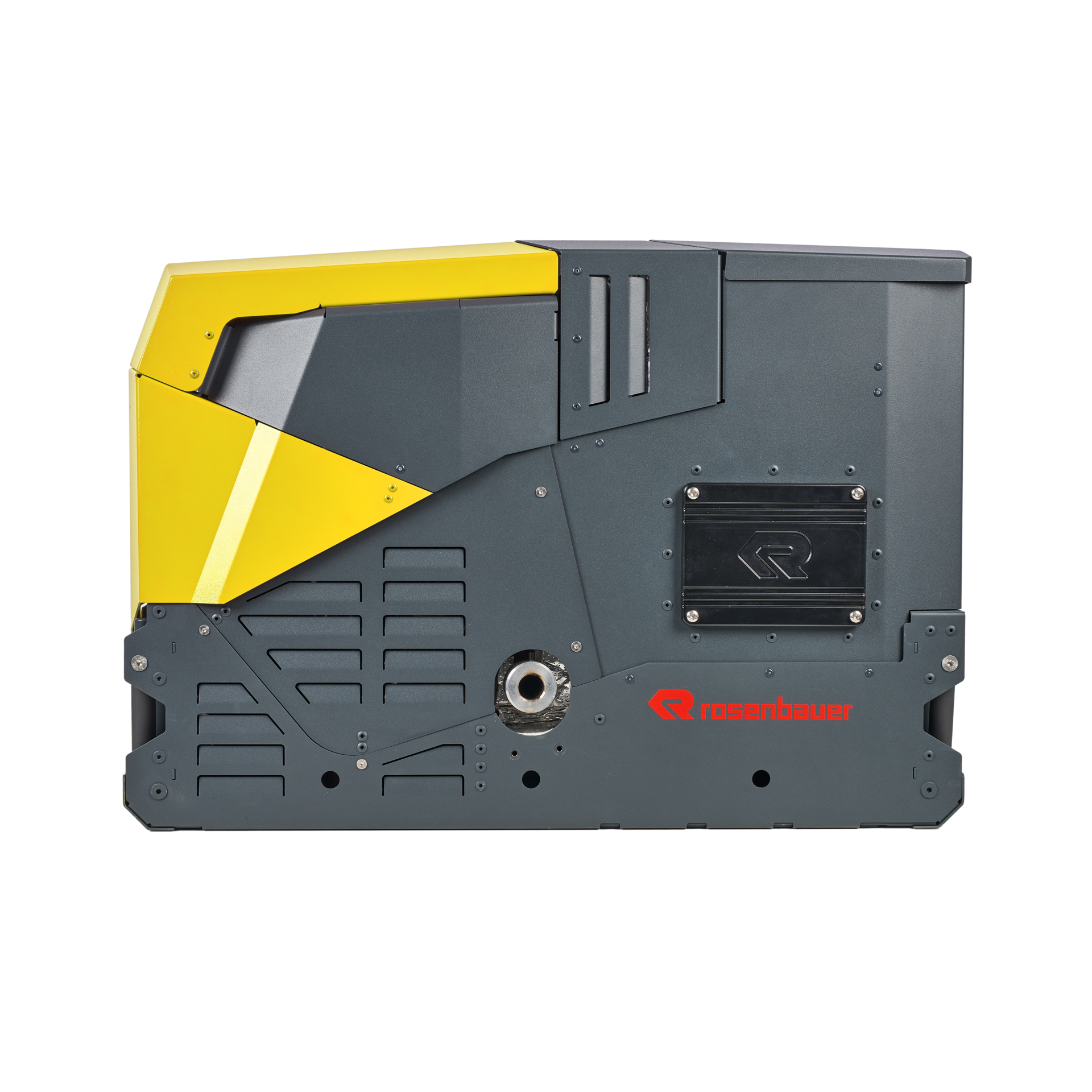

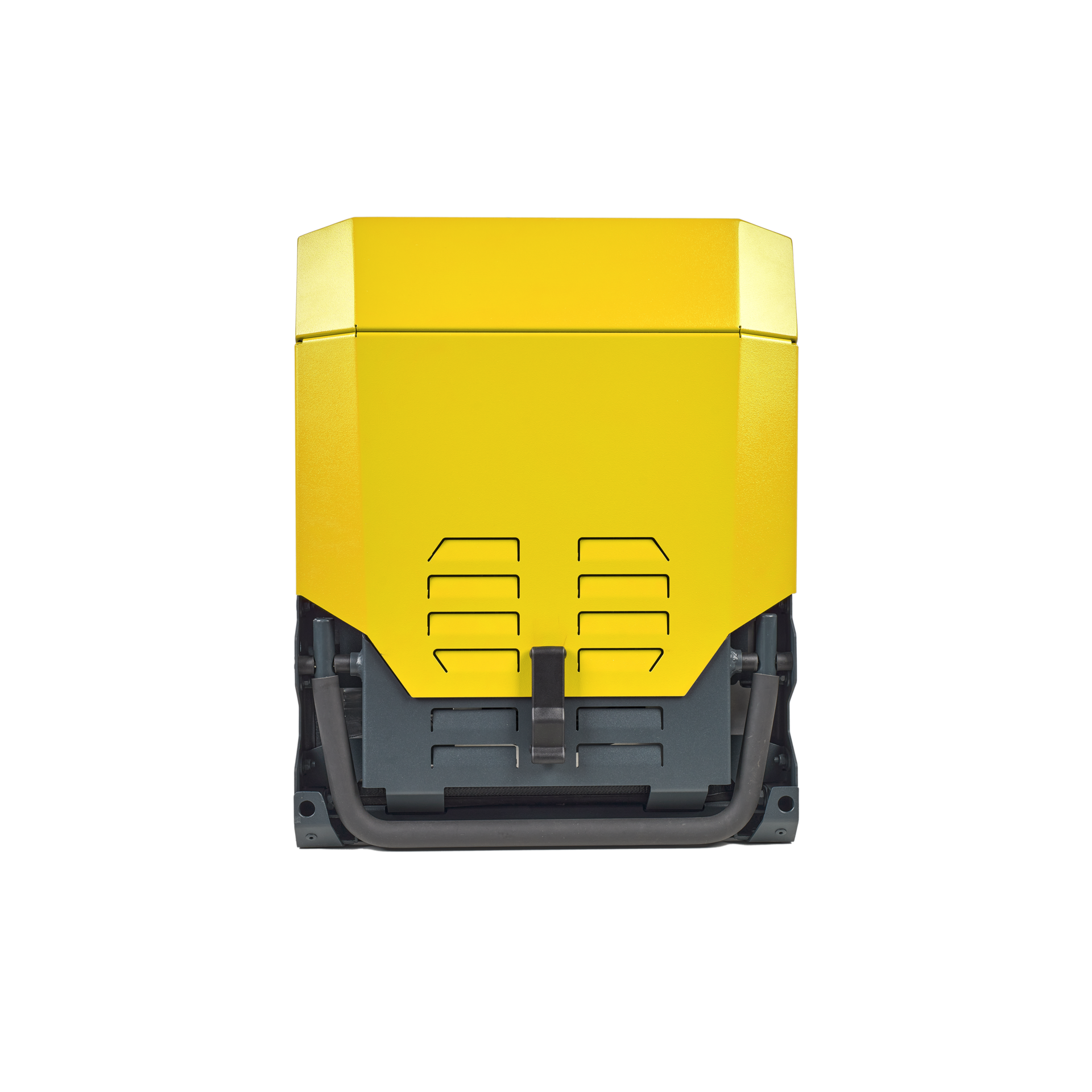

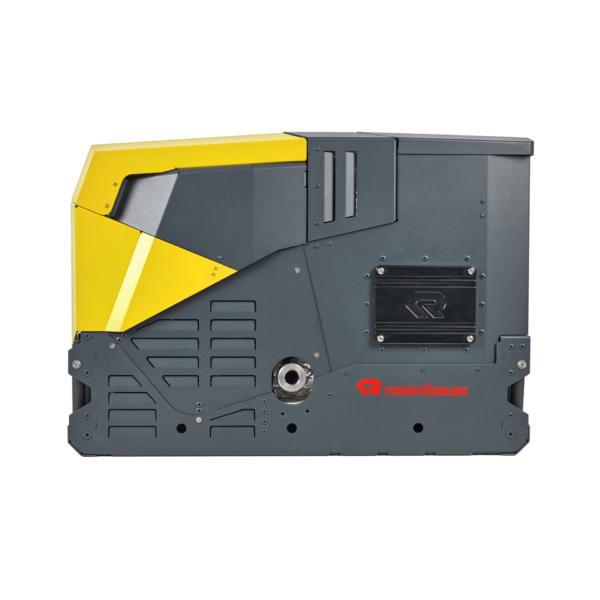

RTE PX 14 Super Silent yellow

approx. delivery time: 20 weeks

Powerful tools for fire departments

The new RTE PX 14 power generator is the absolute power pack for fire fighting operations. These power generators and generator governors handle maximum loads. The RTE PX 14 is oriented towards the operation of heavy starters and allows firefighters to simultaneously operate devices.

Maximum reliability – even under hot conditions

Even in extremely high ambient temperaturs, that can easily cause the instrument and fuel to overheat, the RTE PX 14 proves its resilience and endurance. It always performs reliably. It is precisely what makes it such an indispensable tool in fire fighting operations.

• Extremely light: The new RTE PX 14 is one of the lightest devices in the 8 DIN frame in this class.
• Digital display: Modern, intuitive display for larger and more flexible representations with significantly higher information content.
• Emergency operation: Guarantees reliable operation ot the power generator in any situation, even if battery or electronics fail.
• Optimized fueling concept: Pressing the “External refuelling” button activates the fuel pump, which supplies the tank of the RTE PX 14 with fuel from the canister. This innovative fuel concept not only allows safe refueling, but also increases the operating time up to 30 %.
• Specifications according to DIN 14685-1

TECHNICAL DATA:

1. Unit:

Dimensions	820 x 440 x 580 mm (8-DIN-frame)
Weight (Basic/Super Silent)	approx. 144/150 kg (incl. fuel for 1,5 operation hours at rated load)
Protection class	IP 54
Tank capacity	12 l
Running time under full load	approx. 2 h
Noise level LWA (Basic/Super Silent)	97,7/94,1 dB(A)
Paint color	Colour option Yellow RAL 1012

2. Generator

Type	synchronous with electronic controller
Performance	13,6 kVA / 10,88 kW at 400 V / 3 ~ ; 4,5 kVA / 3,6 kW at 230 V / 1 ~
Voltage	230 / 400 V
Voltage fluctuation	+/- 5 % at 230 / 400 V at 150 U/min
Frequency	50 Hz
Power factor	cos phi 0,8
Nominal current	19,7 A 3 ~ / 29,6 A 1 ~



3. Engine

Manufacturer	Briggs & Stratton Corporation USA
Model	23 PS Vanguard EFI
Type	2-cylinder OHV 4-cycle gasoline engine
Electric starter	in scope of delivery, incl. battery (12 V / 18 Ah, maintenance free)
Regulation	+/- 5 %
Ignition	electronic
Fuel	gasoline unleaded, min. ROZ 91
Fuel supply	diaphragm gasoline pump
Engine oil	recommended: Castrol Softec + SAE 30
Exhaust	according to emission standard 2202/88 EC
Fuel consumption	approx. 6 l/h with full load
Equipment	Recoilstarter, 12 V electric starter
Oilpressure control	not cutting of

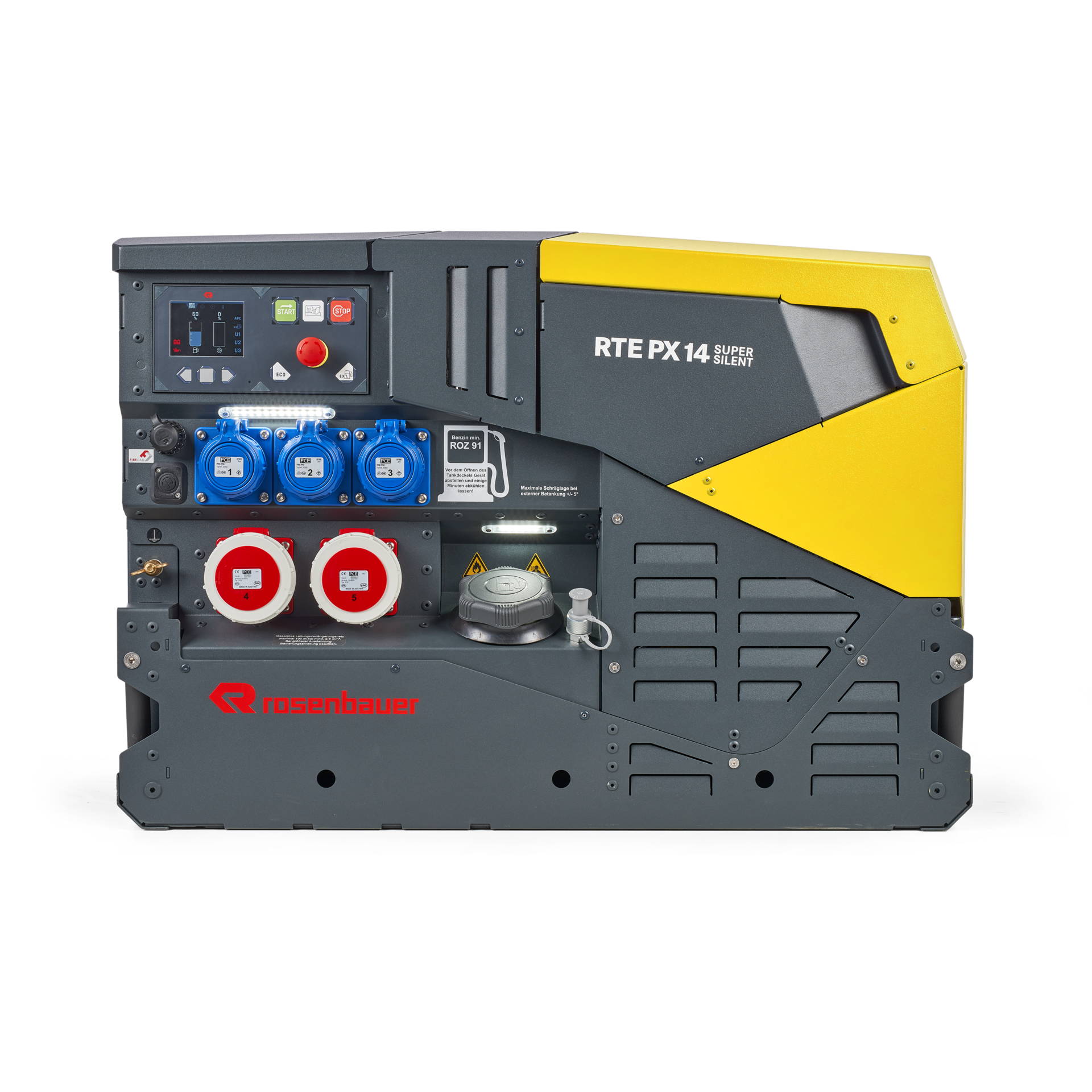

4. Control box

• 2 x water pressure-tight sockets 400 V
• 3 x water pressure-tight sockets 230 V
• 1 x alternating current circuit breakers 16 A 3-pole with neutral connector and monitoring
• 3 x alternating current circuit breakers 16 A 1-pole with neutral connector and monitoring
• 1 x CAN-bus socket FIRE CAN 7-pole, charge retention and remote monitoring according to DIN14700
• 1 x digital display with EMERGENCY / STOP button

Accessories:

• User information, engine information
• Tool bag with 2 spark plugs, 1 spark plug wrench, 1 screwdriver
