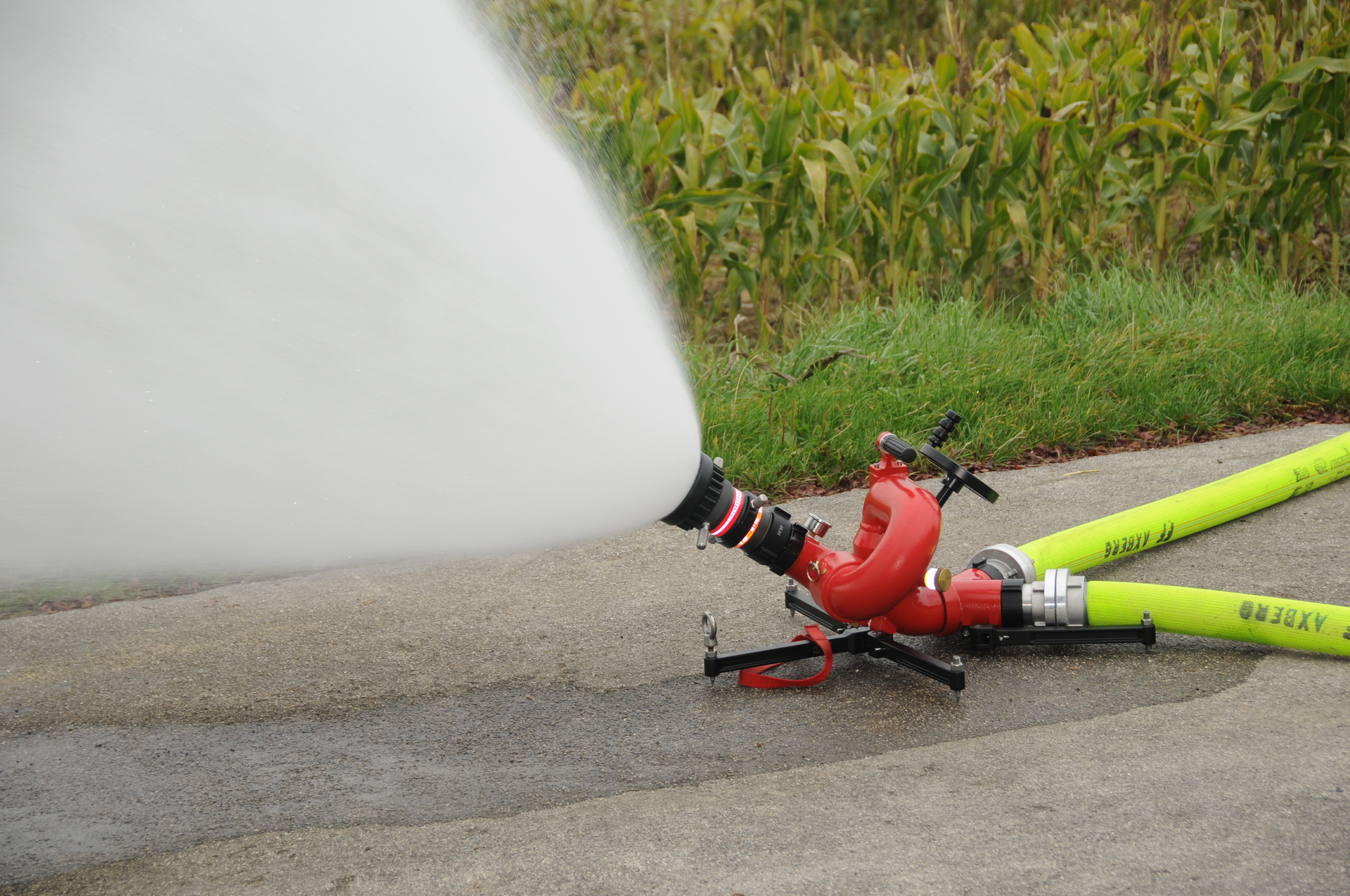

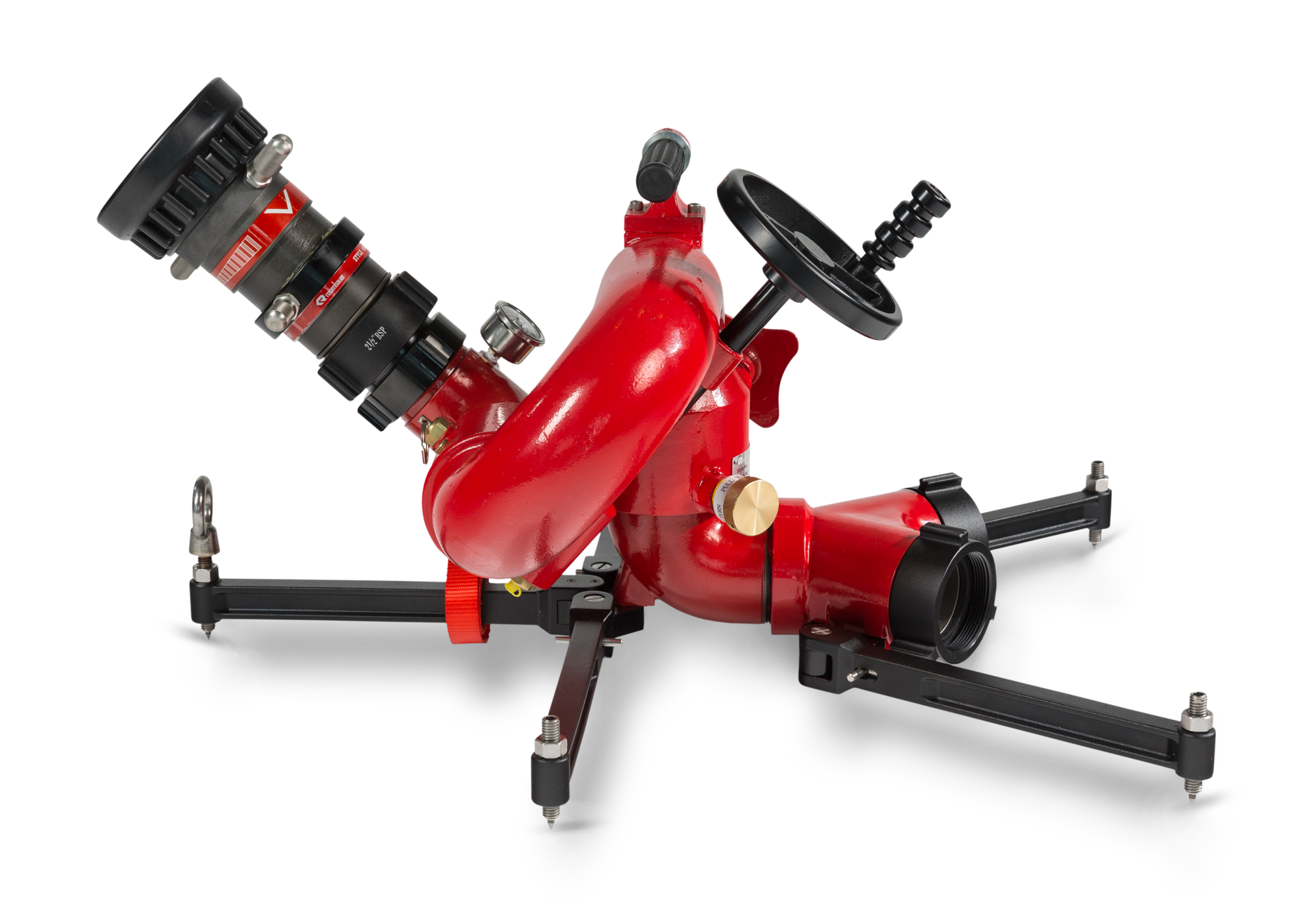

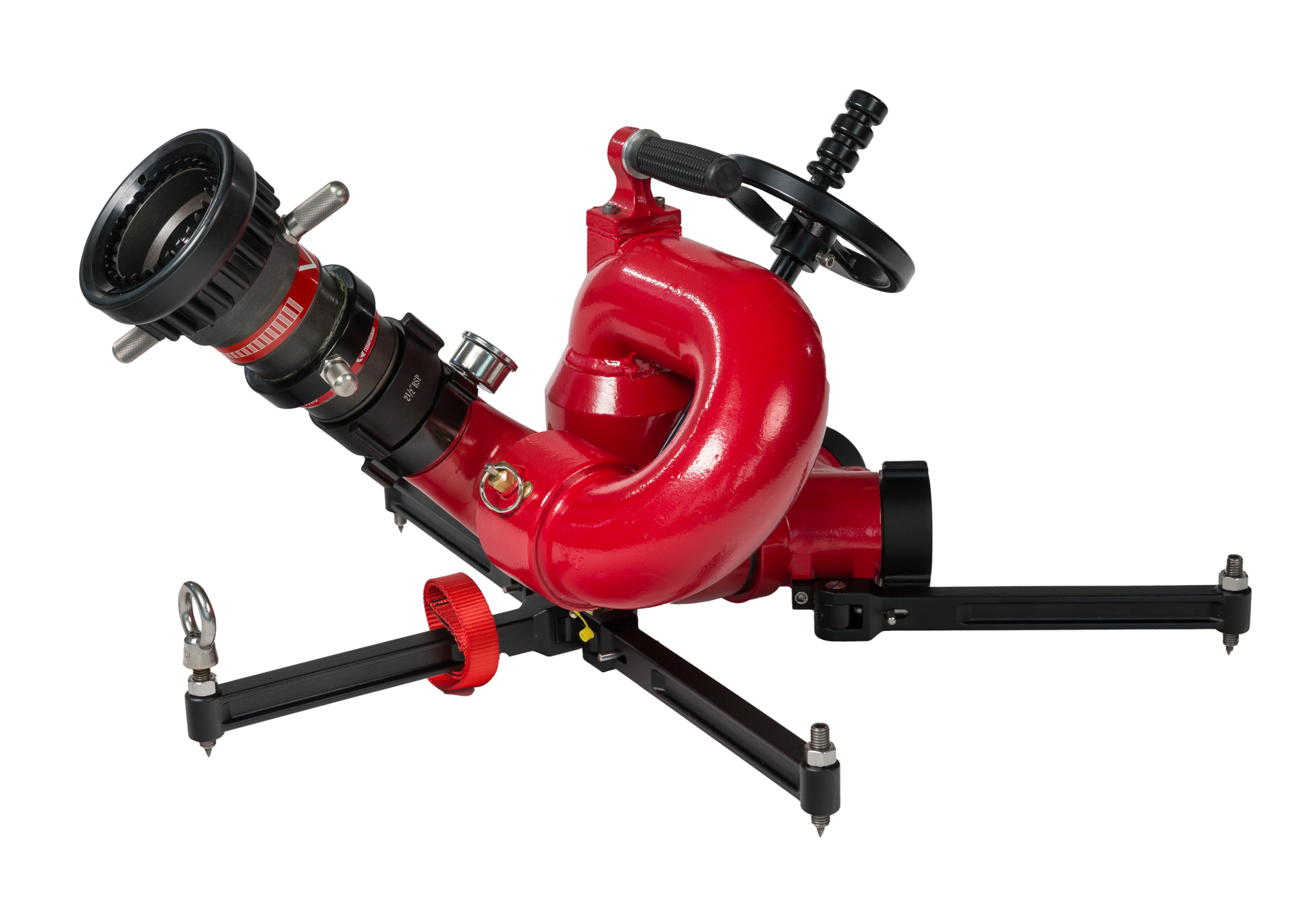

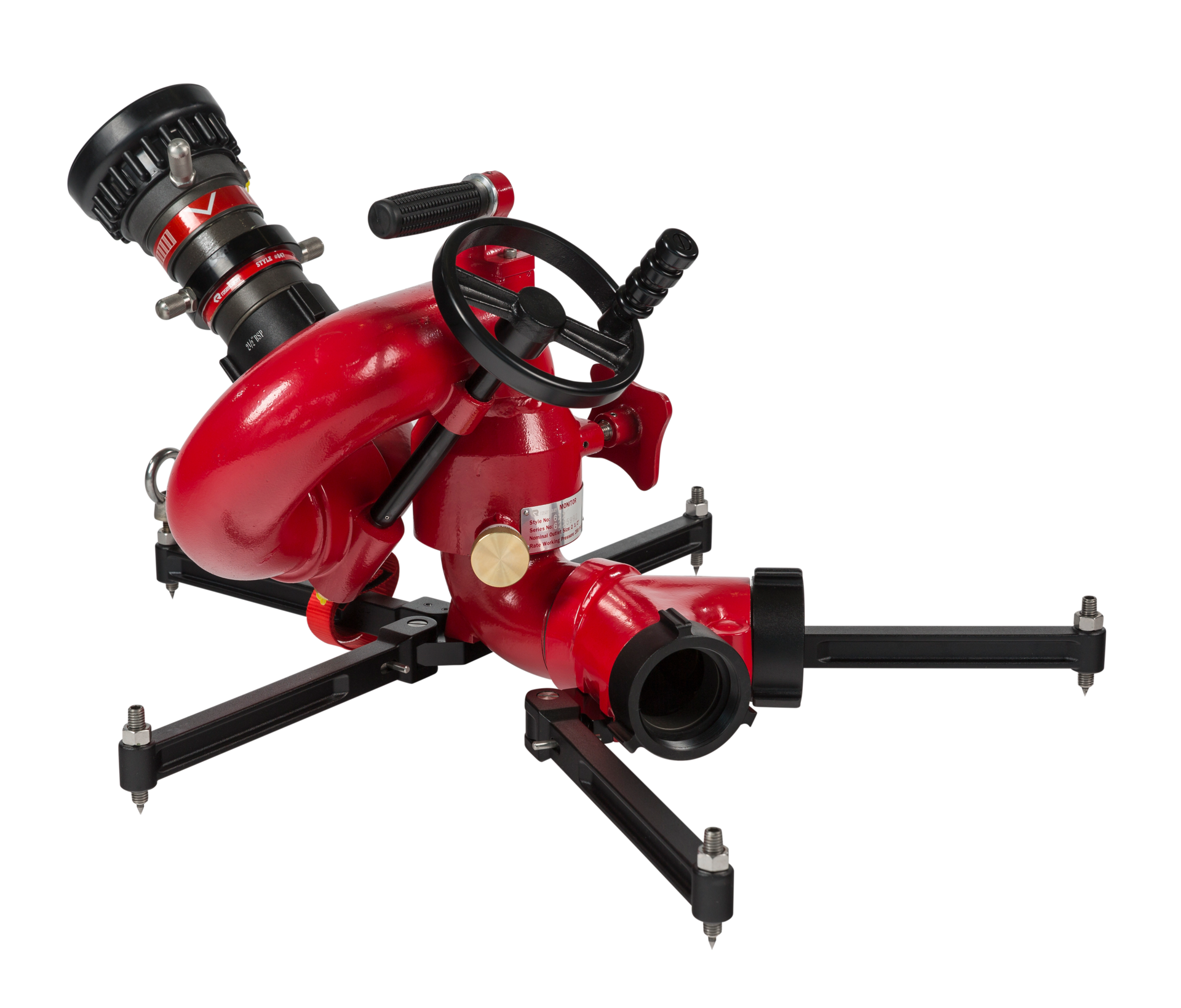

Made of corrosion resistant light alloy. The monitor has specially been designed to control fires or to provide sufficient water cooling capacity in tank farms, Petrochemical installations etc.
Will rotate with a 180° degrees sweep. The monitor has hand wheel elevation control from 90° to 30° above horizontal.
Fitted with an infinitely adjustable monitor nozzle tip with flow settings of 1200, 1600, 2000 or 2400 l/min. Large pattern ring allows for production of full stream wide angle and narrow angle fog.
Comes with two water inlets, provided with Storz-B couplings and four separate stacked tips for full stream action. The monitor comes complete with a foldaway ground base and thanks to it´s small dimensions, it can easily be stored in fire fighting trucks, Pick-Ups and so on. The ground base includes hardened steel ground pikes, that help maintain stability even on uneven ground surfaces.
Weight complete: 23 kg
Throwing range (approximately):
50 m at 1600 l/min and 7 bar inlet pressure
55 m at 2400 l/min and 7 bar inlet pressure
