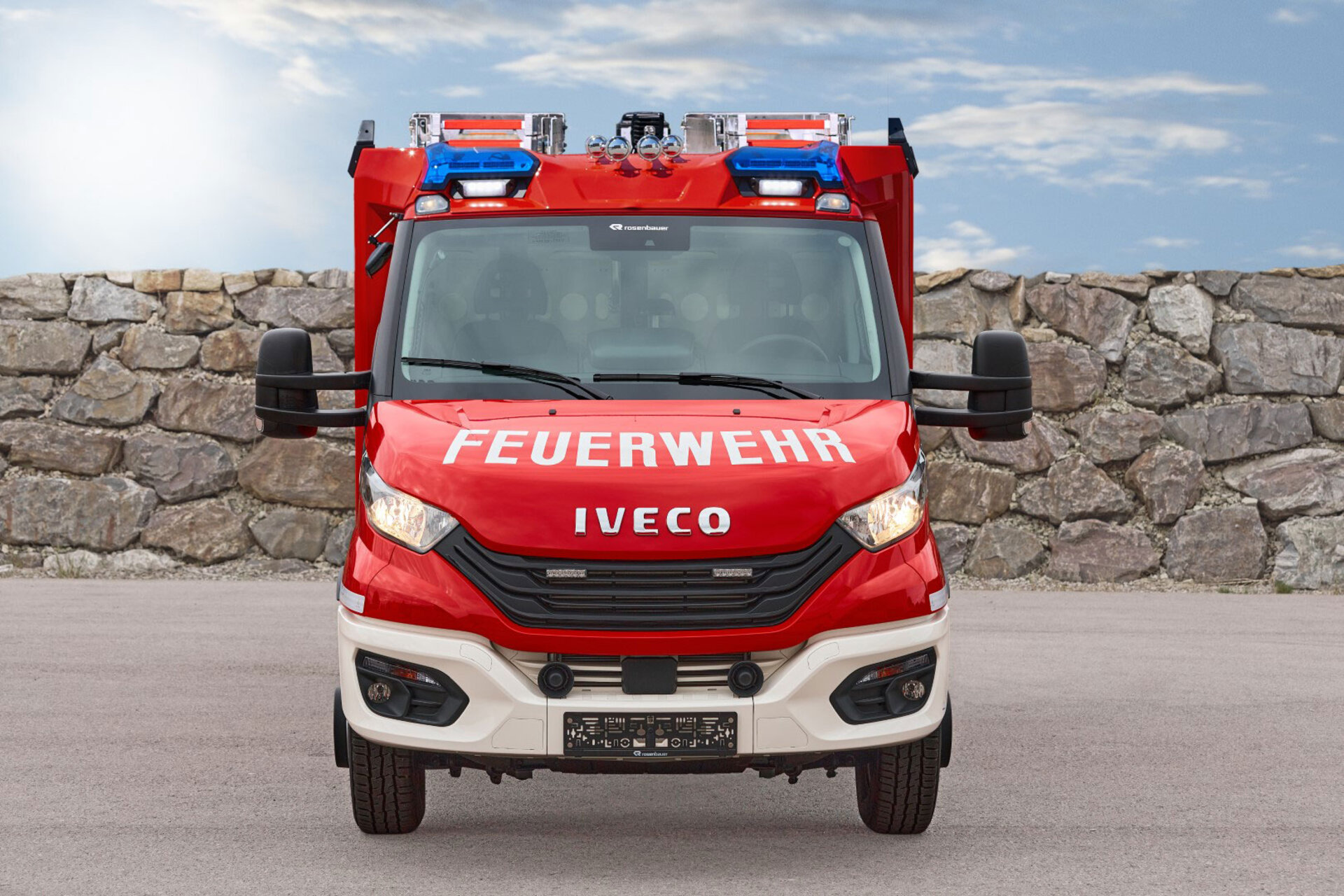

Portable Fire Pump Vehicle
The Portable Fire Pump Vehicle with Water Tank (TSF-W) complies with German Industrial Standard (DIN) 14530-17 and is based on Rosenbauer’s Compact Technology with the product number PM516. The technology allows compact, lightweight and safe assembly.
The superstructure gets its necessary strength from the aluminum profile sandwich construction. The crew compartment is made of self-supporting, bolted and bonded aluminum sheet and sandwich panels. The firefighting equipment is controlled via a clearly arranged switch console on the dashboard. Rosenbauer’s COMFORT bracket system enables optimized removal and safe storage of equipment.
Offered is a Portable Fire Pump Vehicle without equipment but including the portable fire pump (PFP) and brackets. These brackets are optimized for a TSF-W DIN 14530-17 standard load from Rosenbauer. Optionally a corresponding equipment package is offered by Rosenbauer. Necessary modifications to the brackets already provided or additions to brackets in order to accommodate equipment provided by the customer in the TSF-W are possible. A separate offer will be prepared for these modifications of the finished truck and a separate conversion invoice will be issued on the basis of this offer.
Scope of the Portable Fire Pump Vehicle offered here: chassis, fire engine superstructure incl. crew cab, extinguishing system, brackets for standard load according to DIN 14530-17.
Chassis:
- Type: Iveco Daily 72C18 4×2
- Engine power: 132 kW (180 HP)
- Transmission: 8 Speed Automatic Torque Converter HI-MATIC
- Wheelbase: 3,750 mm
- Color: RAL 3000 Flame Red
Crew Cab:
- Crew: 1+5 (2/4/0)
- 4x SCBA–brackets (4x against driving direction)
- Tested 3-point seat belts for all seats
- Crew cab doors with electric power windows and central locking system
- Independent heater in crew cab
Fire Engine Superstructure:
- Manual roller shutters with continuous barlock closure on the side and in the rear
- Generous rear step foldable
Brackets and equipment carriers:
- Brackets in the equipment compartment, optimized for Rosenbauer equipment package (can be ordered as an option) which complies with DIN 14530-17
- Pull-out tray COMFORT for portable pump in the equipment compartment
- Brackets incl. drain roller for extension ladders on the roof
Control system:
- Switch console on the dashboard for operating all functions (warning flashlights, Martin horn, ambient lighting, etc.)
- Water tank level indicator in the pump compartment and in the driver’s cab
- Central electrical system by means of clearly arranged fuse board
Extinguishing system:
- Portable Fire Pump FOX 4 (PFPN 10/1500 according to DIN EN 1028)
- Polypropylene water tank 750 liters incl. integrated baffles and service opening
- Free tank inlet according to DVGW W405-B1 (A) liquid category 5
Pressure outlet:
- 1x pressure outlet Storz C right for fast water delivery
- Folding hose (2x C42) incl. O-stream nozzle stored in removable trough
Tank filling line:
- 1x pressure inlet Storz B with manual ball valve on the right side
Light mast :
- Pneumatic light mast with 4x LED spotlights (powerful 4x 7,050 lm light output) incl. electric turning and swiveling unit (approx. 2.400 mm lifting height)
Optical and acoustic warning device, lighting:
- Two flashing beacons LED integrated in the design roof superstructure on the driver’s cab at the front
- Four flashing beacons LED integrated in the body box front and rear
- Two front strobe lights LED in the radiator grille
- Original Martin horn with four bells on the design roof superstructure
- Glare-free ambient lighting with powerful LED light strips in the body box at the side and rear
Additional equipment:
- Helmet holders in the driver’s cab and crew cab for each seat
- Power supply 230V with feed socket LEAB PowAirBox including start interruption and LED charging indicator light
- Extendable hygiene wall with water connection
- Rear view camera with display on radio in driver’s cab
Dimensions and weight:
- L x W x H = approx. 6,300 x 2,320 x 2,900 mm
- Permissible total weight = 7,200 kg
